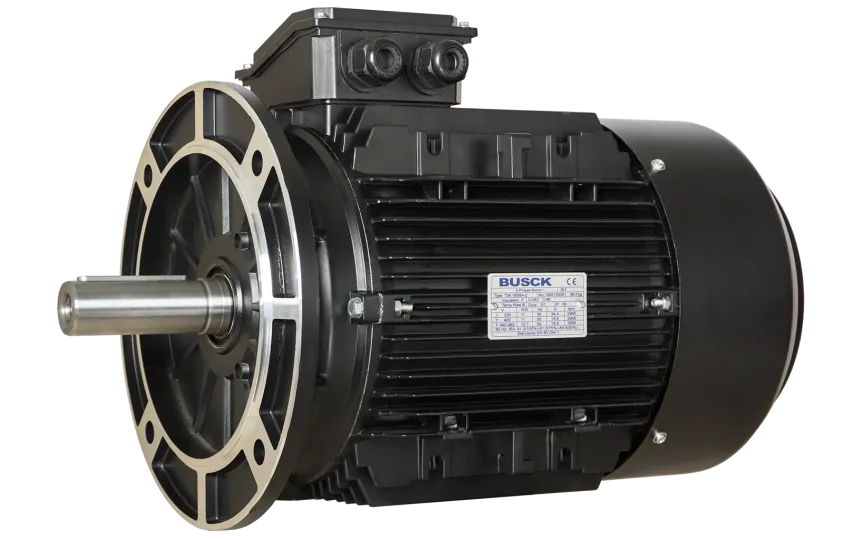

Busck AC motor T3A160MA-2B5, 11kW, 2960RPM, B5, 400/690, 50 Hz, Aluminium

T3A160MA-2B5

The Busck T3A160MA-2B5 is a high-performance AC induction motor designed for industrial applications requiring robust, energy-efficient, and reliable drive solutions. With a rated power of 11 kW and a speed of 2960 RPM, this motor delivers 35.49 Nm of torque for demanding continuous-duty operations.

Built with an aluminium housing, the motor is both lightweight and corrosion-resistant. The totally enclosed fan cooled (TEFC) design ensures effective heat dissipation and durability even in challenging environments.

Featuring a B5 flange mounting with a 300 mm bolt circle diameter (BCD) and a Ø42 mm shaft, the T3A160MA-2B5 allows straightforward integration with gearboxes, pumps, and conveyor systems.

Compliant with IE3 efficiency class, this motor operates at 91.2% full load efficiency, reducing energy costs and supporting sustainable production. Its 400/690 V Δ/Y connection offers flexibility for various power setups.

€2,425.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

Key features:

High performance: Delivering an power output of 11kW and running at a smooth 2960RPM.
IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress, making it suitable for both indoor and outdoor use.
Wide voltage range: The motor is compatible with power supplies ranging from 400V to 690V, ensuring flexibility in various electrical systems.
B5 flange mounting: The B5 flange allows for easy and secure mounting of the motor in a variety of applications.
High efficiency: Complying with IE3 standards, this motor ensures energy efficiency, reducing operational costs and environmental impact.

Specifications:
