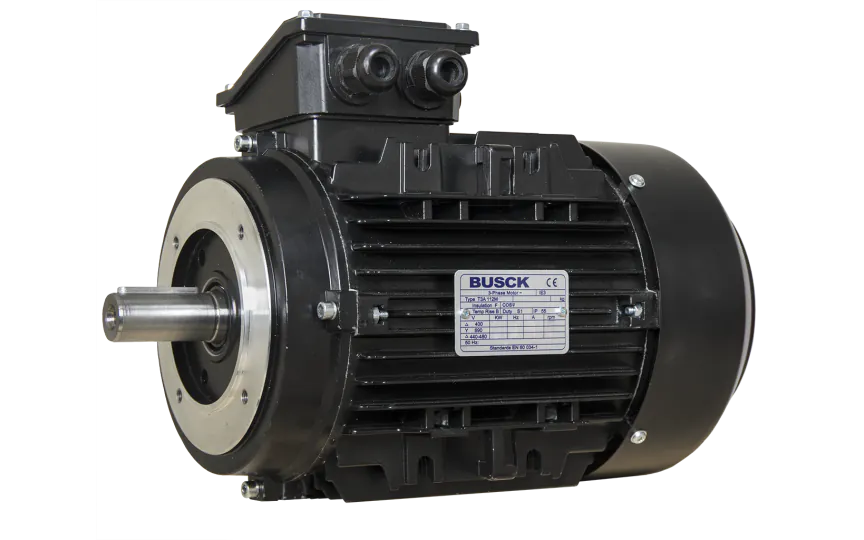

Busck AC motor T3A112MB-4, 5,5kW, 1450RPM, B14, 400/690, 50 Hz, Aluminium

T3A112MB-4

The Busck T3A112MB-4 is a compact and efficient AC induction motor, designed for reliable performance in industrial drive applications. Delivering 5.5 kW of power at 1450 RPM, this 4-pole motor produces 36.22 Nm of torque, making it ideal for continuous-duty operation in pumps, conveyors, and automation systems.

Its aluminium housing provides a lightweight yet durable construction, while the totally enclosed fan cooled (TEFC) design ensures effective thermal management, even in demanding operating conditions.

The motor is built with a B14 flange mounting (bolt circle diameter 130 mm) and a Ø28 mm shaft, allowing easy integration with gearboxes and machinery. With an IE3 efficiency class and 89.6% full-load efficiency, it meets modern energy-saving requirements.

€1,242.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

Key features:

IP55 rating: With an IP55 rating, making it suitable for various indoor and outdoor applications.
Power output: Delivering a substantial 5.5kW of power, the Busck motor empowers your machinery to perform efficiently and reliably.
Optimal speed: The motor operates at 1450RPM.
Wide voltage range: With a voltage range of 400/690V, the motor adapts seamlessly to different power supply setups.
B14 flange mounting: The B14 flange allows for easy installation, providing a secure and precise motor-to-machine connection.
High efficiency: The motor complies with IE3 efficiency standards, ensuring energy savings and reducing operating costs.

Specifications:
